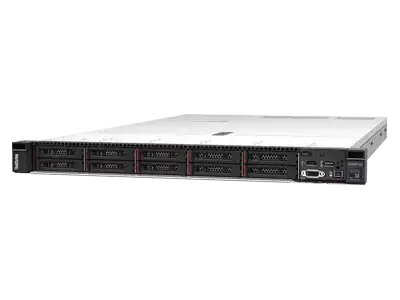

ThinkSystem SR630 V2 Rack Server
Dibuat untuk bisnis, dengan keserbagunaan yang penting bagi bisnis
Dengan percaya diri menerapkan SR630 V2 yang terdepan di industri dalam keandalan dan keamanan yang ditingkatkan untuk cloud, analitik, virtualisasi, atau game.
Description
Tech Specs
| Form Factor/Height | 1U rack server |
|---|---|
| Processor | Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
| Drive Bays | Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
| Memory | 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ DC persistent memory 200 Series modules (PMem) |
| Expansion Slots | Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn’t occupy a standard PCIe slot |
| GPUs | Up to 3x single-width 75W GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |
| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional) |
| HBA/RAID Support | SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs |
| Power | Dual redundant power supplies (up to 1800W Platinum) |
| Systems Management | Lenovo XClarity Controller |
| OSes Supported | Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades |
